Description

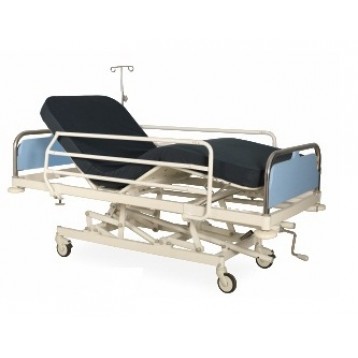

Overall approx dimension : 2175mm (L) x 1000mm (W). Mattress Platform approx. dimension : 1980 mm (L) x 820 mm (W). Height adjustment approx. (without Mattress): Minimum Height 490 mm, Maximum Height 780 mm . Safe working load : 150 Kg. Backrest Angle - 0 ◦-70 ◦ . Trendelenburg - 0◦-10 ◦ . Reverse Trendelenburg - 0◦-6 ◦. Maximum height raised for convenient patient transfer, Instant Intubation & Nursing Staff comfort. Smooth and Jerk free crank mechanism. Provision for heavy duty IV Pole - 2 nos. on head side. Backrest, upper leg , height and Trendelenburg / Reverse Trendelenburg position on crank mechanism with separate screw mechanisms provided at leg end with stainless steel removable handles. Four section uniformly perforated mild steel CRCA sheet top. Framework made from mild steel ERW rectangular tubes. Mounted on four high grade synthetic body castors 125mm dia , two with brake and two without brake. Rubber buffers at four corners.  Pre-treated and epoxy powder coated finish. Supplied in knocked down condition.
